CM Washdown Integrated Product Inspection for Wet Environments

CM Washdown Integrated Product Inspection for Wet Environments

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: Mettler Toledo
Αριθμό μοντέλου: CM Συνδυασμός
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 σετ
Τιμή: Διαπραγματεύσιμα
Packaging Details: Caron box
Χρόνος παράδοσης: 10-30 ημέρες
Supply Ability: 2000 set per month
Επικοινωνία
Λεπτομερής Περιγραφή Προϊόντος
Προϊόν: Συνδυασμός CM Τύπος συσκευασίας: Σάκοι, μπουκάλια, πακέτα, κουτιά, θήκες, συσκευασίες ροής, δίσκοι
Αίτηση επιθεώρησης: Ανίχνευση Μόλυνσης, Ανίχνευση Ξένων Σωμάτων, Έλεγχος Βάρους Χαρακτηριστικό προϊόντος: Βαθιά Κατάψυξη, Ξηρό, Μεσαία-Μεγάλα Πακέτα, Ανοιχτό, Στρογγυλό Δοχείο, Μικρά Ατομικά Τυλιγμένα Προϊό
Βιομηχανία: Χημικά, Τρόφιμα & Ποτά, Μέταλλο, Πλαστικά και Ηλεκτρονικά Εξαρτήματα, Φαρμακευτικά & Βιοτεχνολογία Ζυγίζοντας ακρίβεια: από ± 0,05 g
Τμήμα της βιομηχανίας: Αρτοποιείο και Ζαχαροπλαστείο, Μπύρα, Κρασί και Άλλα Αλκοολούχα Ποτά, Καλλυντικά, Γαλακτοκομικά Μέγιστο βάρος προϊόντος: 10 κιλά
Ταχύτητα μέγιστης γραμμής: 180 m/min Μέγιστη απόδοση: 800 ppm
Επισημαίνω:

washdown integrated load cell

,

wet environment product inspection

,

Mettler Toledo washdown load cell

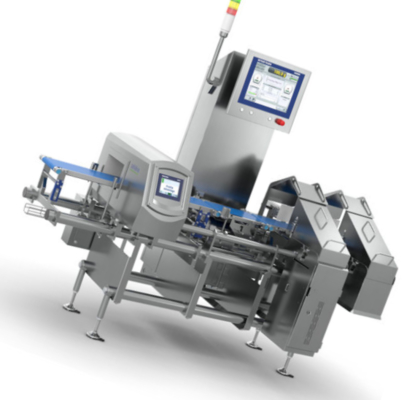

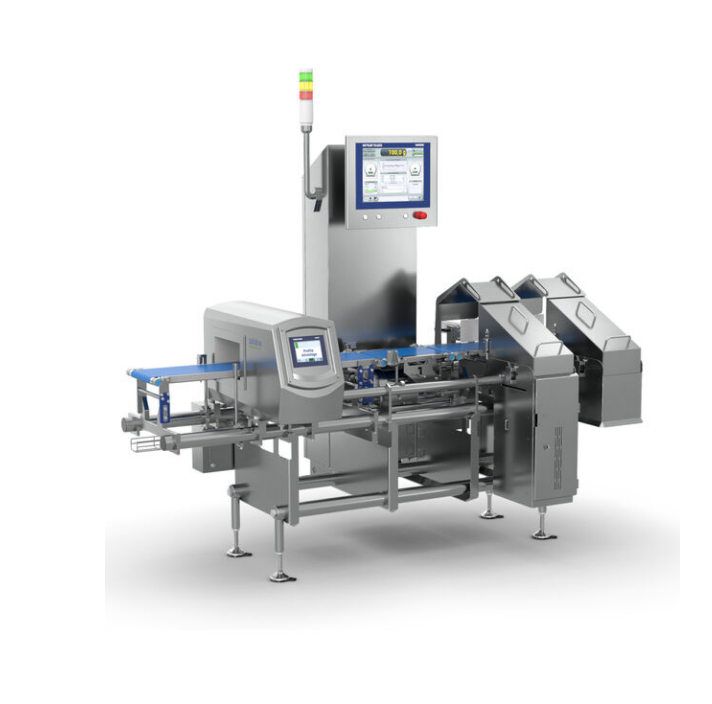

CM Washdown Integrated Product Inspection for Wet Environments
Product Overview

The CM Washdown Combination system is an integrated, rugged solution designed for product inspection in challenging wet and washdown environments. This two-in-one system combines a high-precision checkweigher with a sensitive metal detector in a single, robust frame, making it ideal for the food processing, meat, poultry, and dairy industries where hygiene and sanitation are paramount.

Key Features
  • 2-in-1 Solution: Combined metal detection and precision weighing system - the ideal critical control point for harsh washdown environments
  • Compact, Easy-to-clean Design: Sloped surfaces prevent liquid retention to minimize bacterial contamination, along with tool-less parts assembly offers easy maintenance
  • Compliance for Food Standards: All materials with direct food contact fully comply with Regulation (EC) 1935/2004, (EU) 10/2011 and FDA regulations for food safety
  • Reduced Cleaning Downtime: Quick, tool-less, failsafe disassembly and assembly of the metal detector and weighing conveyors supports rapid cleaning processes
Product Specifications
Material No: 2499000500
IP Rating: IP69
Compatible Software: ProdX
Connectivity: Ethernet TCP/IP, Fieldbus, OPC UA
Inspection Solution: Checkweighing-Metal Detection
Max Product Width: 400 mm
Max Weighing Zones: 7
Weighing Technology: EMFR, Strain Gauge
HMI: 12" Touchscreen, 15" Touchscreen, 7" Touchscreen
Max Product Height: 200mm
Frequencies: Dual Simultaneous up to 300 kHz, up to 600 kHz, up to 800 kHz
Product Attributes
Attribute Value
Product CM Combination
Packaging Type Bags, Bottle, Bundles, Cartons, Cases, Flow Packs, Trays
Inspection Application Contamination Detection, Foreign Body Detection, Weight Control
Product Characteristic Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech
Weighing Accuracy from ±0.05 g
Industry Segment Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, Dairy
Max Product Weight 10 kg
Max Line Speed 180 m/min
Max Throughput 800 ppm
