Name: SWB505 SS 1.1t C6 Load Cell Module – Durable Stainless Steel Sensor for Harsh Environments
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Μονάδα ζύγισης SWB505 SS 1.1T2.5K C6
Availability: InStock

Αρχική Σελίδα Προϊόντα

SWB505 SS 1.1t C6 Load Cell Module – Durable Stainless Steel Sensor for Harsh Environments

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Mettler Toledo
Αριθμό μοντέλου:	Μονάδα ζύγισης SWB505 SS 1.1T2.5K C6

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1 ΣΕΤ
Τιμή:	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες:	Κιβώτιο Caron
Χρόνος παράδοσης:	10-30 ημέρες
Δυνατότητα προσφοράς:	2000 σύνολο το μήνα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Προϊόν:	Κελίδα φόρτωσης Mettler Toledo	Μέγιστη χωρητικότητα:	21,100 kg
Υλικό:	Ατσάλι από ανοξείδωτο V2A (AISI 304)	μετρολογία:	NTEP III 10.000d OIML C6
Κελί φορτίου:	0745Α καλώδιο 5 μέτρων (16,6 πόδια)	Ακρίβεια:	Υψηλή
Αξιολόγηση προστασίας:	IP68 NEMA 6/6P	Περιβάλλον / Υλικό:	Καθαρισμός / Ατσάλι
Επικίνδυνη έγκριση:	ATEX, FM, cFM	Κριτική:	Τύπος
Επισημαίνω:	stainless steel load cell module , C6 load cell for harsh environments , 1.1t capacity load cell sensor

SWB505 SS 1.1t C6 Load Cell Module – Durable Stainless Steel Sensor for Harsh Environments

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	2,500 lb (1,100 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 10,000d OIML C6
Load Cell	0745A 5m (16.6ft) cable
Accuracy	High
Protection Rating	IP68 NEMA 6/6P
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard

Product Description

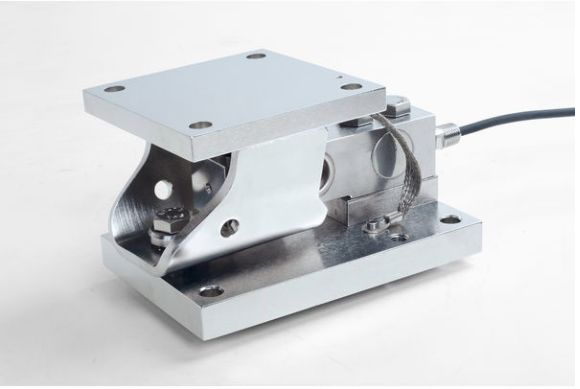

The SWB505 SS 1.1t C6 Load Cell Module is a compression weigh module designed for harsh industrial environments. When weight is applied, the top plate and base plate compress toward each other, making it ideal for direct installation on ground, piers, or structural beams.

This stainless steel sensor is commonly used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. With capacities ranging from 3 kg to 300 tons, it offers exceptional versatility.

Economic System Integration

Weigh Module SWB505 MultiMount Stainless Steel 1.1t/2.5k C6

Static & Dynamic Weighing

This multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.

Safety & Protection

Engineered with 360° checking, built-in anti-uplift and down stops, hazardous area approvals, and an IP68-rated stainless steel load cell for maximum reliability.

Ease of Installation/Service

Pre-aligned for straightforward installation with easy transition to weighing mode. Requires minimal lift for load cell removal during maintenance.

Specifications

Material	Stainless Steel V2A (AISI 304)
Material No	30131904
Maximum Capacity	2,500 lb (1,100 kg)
Protection Rating	IP68 NEMA 6/6P
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Load Cell	0745A 5m (16.6ft) cable
Accuracy	High
Metrology	NTEP III 10,000d OIML C6
