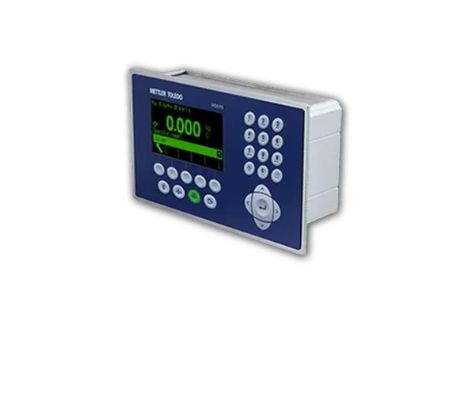

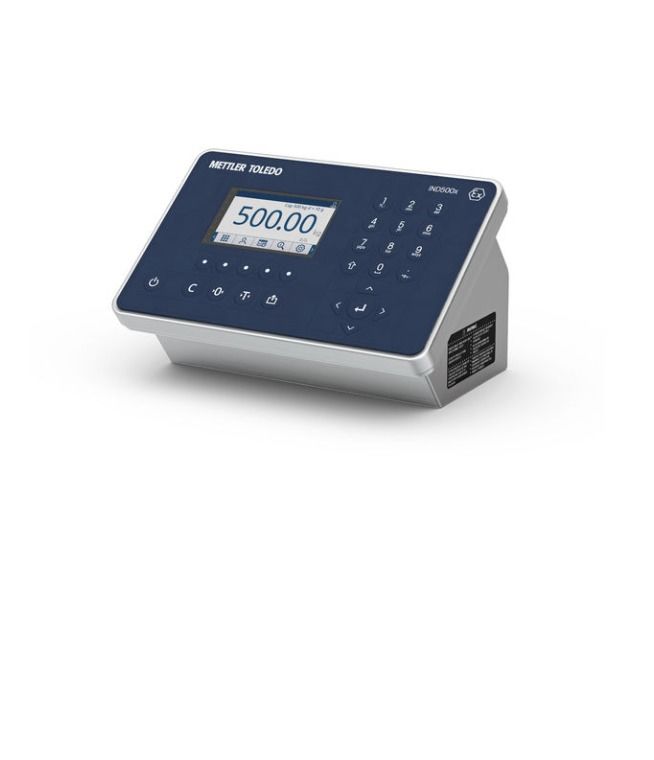

METTLER TOLEDO IND500x – Weighing Terminal for Use in Explosive, Flammable Areas
| Attribute |
Value |
| Product |
Mettler Toledo Indicator |
| Scale |
Analog, IDNet, SICSpro |
| Hazardous Approval |
Division 1, Zone 1/21 |
| Communication |
Intrinsically safe RS232 |
| Application Software |
Formulation, TaskExpert custom programming |
| Communication (Optional) |
4-20 mA Analog Output, EtherNet TCP/IP, EtherNet/IP, PROFIBUS DP, ProfiNet |
| Voltage |
AC Version |
| Display |
4.3" TFT color display |
| Mounting Flexibility |
Column, Desk, Wall mounted |
| Dimensions (LxHxW) |
11.4 in x 6.4 in x 7.2 in (289 mm x 162 mm x 184 mm) |
High-Performance Weighing Terminal for Use in Explosive or Flammable Areas
The intrinsically safe IND500x weighing indicator delivers process control and versatility for Zone 1/21 and Division 1 classified areas, balancing safety with maximum productivity.
Powerful Process Control and Consistent Quality in Ex-Areas
Optimize manual, automatic or semi-automatic applications with the IND500x in hazardous production environments where safety is critical.
Error-Free, Intuitive Operation
The IND500x combines intrinsically safe construction with a user-friendly interface and flexible connectivity options to accelerate processes, increase productivity and improve product quality.
Safety in Hazardous Environments
Weighing equipment for hazardous areas must comply with extensive regulations. Our free Hazardous Area Competence Guide helps you:
- Avoid safety incidents
- Stay compliant
- Correctly install equipment
- Prevent explosions
- Properly mark equipment
Repeatable Manual Formulation
The built-in formulation application minimizes operator errors, reduces waste and enables high-quality production with data traceability.
Flexible Filling Processes
IND500x excels in manual, semi-automatic or automatic filling of single materials with built-in memory tables for seamless material switching.
Continued Weighing Performance
METTLER TOLEDO Service provides resources to enhance efficiency, performance and productivity through customized service packages.
Frequently Asked Questions
Will the IND500x interface with my PLC, MES or ERP system?
Yes. The IND500x can be configured with options including analog output and RS-232 serial communication, with optional ACM500 module for enhanced connectivity.
What hazardous area approvals are available with the IND500x?
The IND500x is approved for use in Zone 1/21 and Division 1 for FM, ATEX and IECEx. Contact your sales representative for country-specific approvals.
What does "intrinsically safe" mean?
Intrinsically safe technology prevents explosions by limiting energy transfer to hazardous areas below ignition thresholds, allowing safe use in flammable environments.
How accurate is the IND500x?
The IND500x offers readability up to 600,000d, depending on the weighing scale system used.
Can the IND500x be programmed to meet our specific needs?
Yes, with optional TaskExpert application for custom programs, plus filling and formulation applications for process accuracy.
